CP_Dialog Class Reference

Base class for handling dialogs in CPLAT.

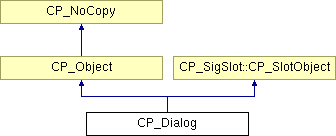

Inheritance diagram for CP_Dialog:

CP_Object CP_SigSlot::CP_SlotObject CP_NoCopy List of all members.

Public Types

enum  { kCP_DialogModality_Modal, kCP_DialogModality_Modeless }

Public Member Functions

void SetID (FourCharCode inIdentifier)
FourCharCode GetID ()
void RegisterSignal (const CP_SignalHolder &inSignal)
CP_DataValueSignalFindSignal (const CP_String &inSignalName)
UInt32 GetNumberSignals ()
CP_String GetNthSignalName (UInt32 inSignalIndex)
void RegisterSlot (const CP_SlotHolder &inSlot)
CP_DataValueSlot FindSlot (const CP_String &inSlotName)
UInt32 GetNumberSlots ()
CP_String GetNthSlotName (UInt32 inSlotIndex)
template<class R, class P1, class P2>
CP_CommandHandlerSignalConnect (CPLAT::CP_CommandNo cmd, void(R::*handler)(P1, P2), SInt32 mode)
template<class R, class P1, class P2>
void Connect (CP_Object *control, const CPLAT::CP_String &signalName, void(R::*handler)(P1, P2))
void disconnect_all ()
void signal_connect (CP_Signal *inSender)
void signal_disconnect (CP_Signal *inSender)
Constructor / Destructor
 CP_Dialog ()
 Constructor.
virtual ~CP_Dialog () throw ()
 Destructor.
Initialization
void Create (const CP_Point &inUpperLeft, const CP_Size &inContentSize, const CP_String &inWindowTitle, const CP_WindowTypeBase &inWindowType)
void CreateButtons (const CP_String &inDefaultButtonText, const CP_String &inCancelButtonText)
Events
void Run (SInt16 inModal=kCP_DialogModality_Modal)
Getters
CP_WindowGetWindow ()
Setters
void SetModality (CP_DialogModality *inModality)
void SetModality (WindowModality inWindowModality, CP_Window *inParentWindow=NULL)

Static Public Member Functions

static void Connect (CP_Object *sender, const CP_String &signalName, CP_Object *receiver, const CP_String &slotName, const bool reciprocal=false)
static void Connect (CP_Object *sender, CP_Object *receiver, const bool reciprocal=false, const CP_String &signalName=kCP_Signal_ValueChanged, const CP_String &slotName=kCP_Slot_SetValue)

Protected Member Functions

Slots
void DismissButtonClicked (CP_DataValueHolder &inValue, OSStatus &inOutStatus)
void CancelButtonClicked (CP_DataValueHolder &inValue, OSStatus &inOutStatus)

Protected Attributes

CP_WindowfDialogWindow
CP_DialogModalityfDialogModality
CP_DataValueSignal fDismissDialogSignal
CP_DataValueSignal fCancelDialogSignal
CP_Signals_ArrayfSignals
CP_Slots_ArrayfSlots
FourCharCode fObjectID
sender_set fSenders

Static Protected Attributes

static FourCharCode fObjectIDCount = 0

Member Enumeration Documentation

anonymous enum


Enumeration values:
kCP_DialogModality_Modal
kCP_DialogModality_Modeless


Constructor & Destructor Documentation

CPLAT_Begin_Namespace_CPLAT CP_Dialog::CP_Dialog  )


Constructor.

Exceptions:
none

CP_Dialog::~CP_Dialog  )  throw () [virtual]


Destructor.

Exceptions:
none


Member Function Documentation

void CP_Dialog::Create const CP_Point inUpperLeft,
const CP_Size inContentSize,
const CP_String inWindowTitle,
const CP_WindowTypeBase inWindowType


Creates the dialogs main window from the passed in params. Use this if you want to create just the dialogs window, and then will populate the dialog with views.

Parameters:
inUpperLeft Upper left corner of the dialogs window.
inContentSize Content size of the dialogs window.
inWindowTitle Title of the dialogs window.
inWindowType CP_WindowTypeBase object that controls the appearance of the dialogs window.
Exceptions:
none
Returns:
void

void CP_Dialog::CreateButtons const CP_String inDefaultButtonText,
const CP_String inCancelButtonText


Creates the default and optionally cancel buttons for the dialog. The cancel button will only be created if the inCancelButtonText is not empty, otherwise only the default button is created. The buttons will be assigned the following object ids: DefaultButton - kCP_DefaultButtonObjectID, CancelButton - kCP_CancelButtonObjectID

Parameters:
inDefaultButtonText Text of the default button.
innCancelButtonText Text of the cancel button.
Exceptions:
none
Returns:
void

void CP_Dialog::Run SInt16  inModal = kCP_DialogModality_Modal  )


Runs the dialog event loop. Call this once the dialog has been created and you want to handle the events for the dialog.

Parameters:
inModal Flag to indicate the modality of the dialog. It can be one of the following values:
  • kCP_DialogModality_Modal
  • kCP_DialogModality_Modeless
Exceptions:
none
Returns:
void

CP_Window* CP_Dialog::GetWindow  )


Returns the CP_Window used to display the dialogs views.

Exceptions:
none
Returns:
CP_Window The dialogs window.

void CP_Dialog::SetModality CP_DialogModality inModality  )


Sets the dialogs modality.

Parameters:
inModality The CP_DialogModality to control the modality of this dialog.
Exceptions:
none
Returns:
void

void CP_Dialog::SetModality WindowModality  inWindowModality,
CP_Window inParentWindow = NULL


Sets the modality of the dialogs window.

Parameters:
inWindowModality Modality of the dialogs window, and can be one of the following values:
  • kCP_E_WindowModalityNone
  • kCP_E_WindowModalitySystemModal
  • kCP_E_WindowModalityAppModal
  • kCP_E_WindowModalityWindowModal
Exceptions:
none
Returns:
void

void CP_Dialog::DismissButtonClicked CP_DataValueHolder inValue,
OSStatus inOutStatus
[protected]


Called when the user has clicked on the dismiss button. This will send out a kCP_Signal_DismissDialog which you can listen for and handle any action needed when the user wants to dismiss the dialog. If you want the dialog to be dismissed, then return CP_noErr from this signal, otherwise the dialog will not be dismissed. You might not want to return CP_noErr to dismiss the dialog, if say an edit field did not contain a valid value. This gives you a chance to validate the data in the dialog before it is dismissed.

Parameters:
inValue Not used.
inOutStatus Status value passed from the clicked on button.
Exceptions:
none
Returns:
void

void CP_Dialog::CancelButtonClicked CP_DataValueHolder inValue,
OSStatus inOutStatus
[protected]


Called when the user has clicked on the cancel button. This will send out a kCP_Signal_CancelDialog which you can listen for and handle any action needed when the user wants to dismiss the dialog. If you want the dialog to be dismissed, then return CP_noErr from this signal, otherwise the dialog will not be dismissed. You might not want to return CP_noErr to dismiss the dialog, if say an edit field did not contain a valid value. This gives you a chance to validate the data in the dialog before it is dismissed.

Parameters:
inValue Not used.
inOutStatus Status value passed from the clicked on button.
Exceptions:
none
Returns:
void

void CP_Object::SetID FourCharCode  inIdentifier  )  [inherited]


Sets the identifier for this object. If a specific identifier is not set with this function, then a default id is used, which is simply a running count of the number of objects created.

Parameters:
inIdentifier The objects identifier.
Returns:
void

FourCharCode CP_Object::GetID  )  [inherited]


Returns the objects identifier.

Returns:
FourCharCode The identifier of this object.

void CP_Object::RegisterSignal const CP_SignalHolder inSignal  )  [inherited]


Registers the signal / signal name contained in the passed in inSignal object.

Parameters:
inSignal CP_SignalHolder that holds a signal and string identifier.
Returns:
void

CP_DataValueSignal * CP_Object::FindSignal const CP_String inSignalName  )  [inherited]


Finds the CP_DataValueSignal object that matches the passed in inSignalName.

Parameters:
inSignalName CP_String containing the identifier of the signal to return.
Returns:
CP_DataValueSignal * Returns a pointer to a CP_DataValueSignal object.

UInt32 CP_Object::GetNumberSignals  )  [inherited]


Returns the number of signals for this object.

Returns:
UInt32 The number of signals.

CP_String CP_Object::GetNthSignalName UInt32  inSignalIndex  )  [inherited]


Returns the signal name of the passed in signal index.

Parameters:
inSignalIndex Index of the name of the signal to return.
Returns:
CP_String The name of the nth signal being returned.

void CP_Object::RegisterSlot const CP_SlotHolder inSlot  )  [inherited]


Registers the slot / slot name contained in the passed in inSlot object.

Parameters:
inSlot CP_SignalHolder that holds a slot and string identifier.
Returns:
void

CP_DataValueSlot CP_Object::FindSlot const CP_String inSlotName  )  [inherited]


Finds the CP_Slot1 object that matches the passed in inSlotName.

Parameters:
inSlotName CP_String containing the identifier of the slot to return.
Returns:
CP_DataValueSlot Returns a pointer to a CP_DataValueSlot object.

UInt32 CP_Object::GetNumberSlots  )  [inherited]


Returns the number of slots for this object.

Returns:
UInt32 The number of slots.

CP_String CP_Object::GetNthSlotName UInt32  inSlotIndex  )  [inherited]


Returns the slot name of the passed in signal index.

Parameters:
inSlotIndex Index of the name of the slot to return.
Returns:
CP_String The name of the nth slot being returned.

template<class R, class P1, class P2>
CP_CommandHandlerSignal* CP_Object::Connect CPLAT::CP_CommandNo  cmd,
void(R::*)(P1, P2)  handler,
SInt32  mode
[inherited]


template<class R, class P1, class P2>
void CP_Object::Connect CP_Object control,
const CPLAT::CP_String &  signalName,
void(R::*)(P1, P2)  handler
[inherited]


void CP_Object::Connect CP_Object sender,
const CP_String signalName,
CP_Object receiver,
const CP_String slotName,
const bool  reciprocal = false
[static, inherited]


void CP_Object::Connect CP_Object sender,
CP_Object receiver,
const bool  reciprocal = false,
const CP_String signalName = kCP_Signal_ValueChanged,
const CP_String slotName = kCP_Slot_SetValue
[static, inherited]


void CP_SigSlot::CP_SlotObject::disconnect_all  )  [inherited]


void CP_SigSlot::CP_SlotObject::signal_connect CP_Signal inSender  )  [inherited]


void CP_SigSlot::CP_SlotObject::signal_disconnect CP_Signal inSender  )  [inherited]



Member Data Documentation

CP_Window* CP_Dialog::fDialogWindow [protected]


CP_DialogModality* CP_Dialog::fDialogModality [protected]


CP_Window used to display the dialog.

CP_DataValueSignal CP_Dialog::fDismissDialogSignal [protected]


Modality of the dialog.

CP_DataValueSignal CP_Dialog::fCancelDialogSignal [protected]


Signal sent when the dismiss button is clicked.

CP_Signals_Array* CP_Object::fSignals [protected, inherited]


CP_Slots_Array* CP_Object::fSlots [protected, inherited]


List of registered signals for this object.

FourCharCode CP_Object::fObjectID [protected, inherited]


List of registered slots for this object.

CPLAT_Begin_Namespace_CPLAT FourCharCode CP_Object::fObjectIDCount = 0 [static, protected, inherited]


Object identifier.

sender_set CP_SigSlot::CP_SlotObject::fSenders [protected, inherited]



The documentation for this class was generated from the following files:
